Using ADL

The Automatic Data Loader (ADL) is based Wagtail and provides supplier specific wagtail plugins to collect data, manage station metadata and distribute data to different channels.

Configuring ADL Dispatch Channel for wis2box

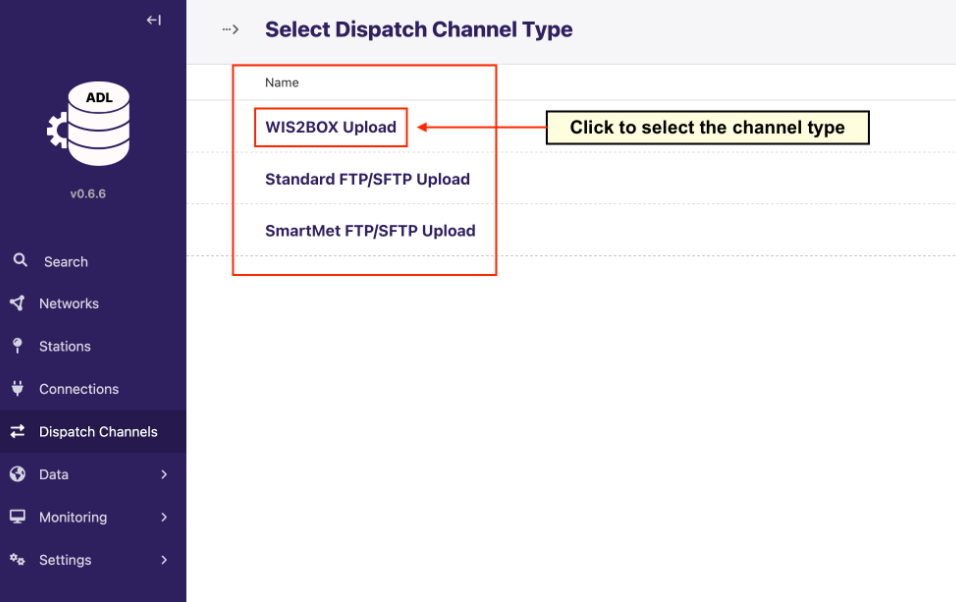

To send data from ADL into wis2box, you need to configure a new “WIS2BOX Upload” Dispatch Channel in ADL:

ADL Dispatch Channel configuration example

Note

When using this channel wis2box data plugins for the dataset must be configured in csv2bufr with the “AWS-template” .

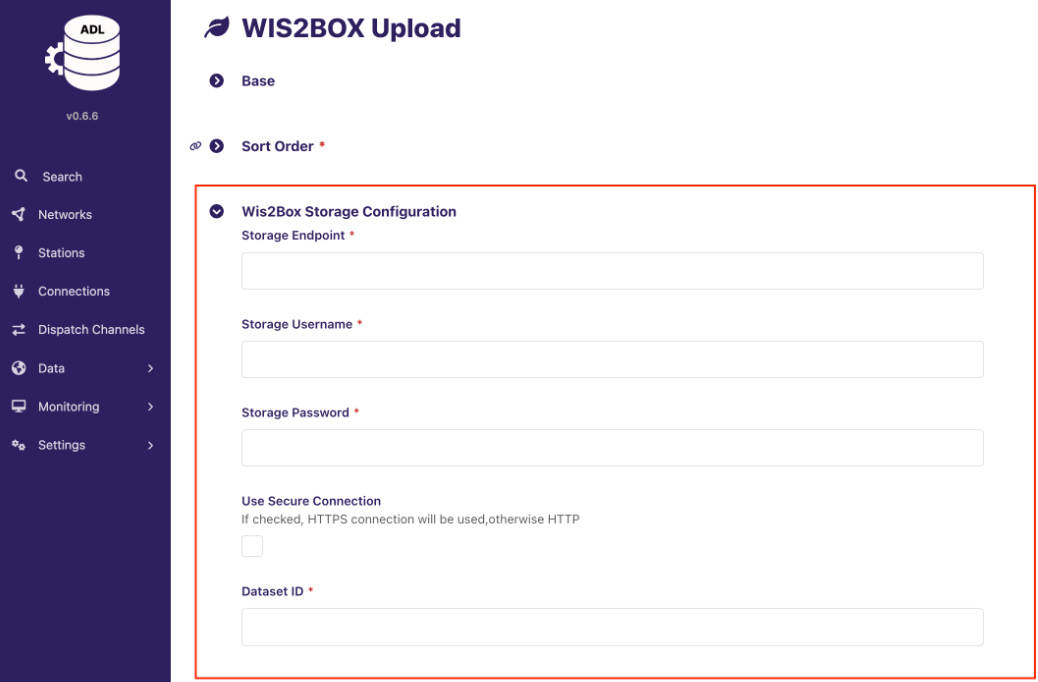

You will need to provide the wis2box storage configuration in the “WIS2BOX Upload” channel:

ADL Dispatch Channel configuration example

The wis2box storage endpoint by default is http://<your-host-ip>:9000. Make sure that the ADL instance can reach this endpoint and that the port is open in your firewall settings between ADL and wis2box. If the ADL and wis2box are hosted on the same machine you can use http://localhost:9000 as the storage endpoint.

The storage username and password are defined by the WIS2BOX_STORAGE_USERNAME and WIS2BOX_STORAGE_PASSWORD environment variables in wis2box.env.

The Dataset ID needs to match the dataset identifier or the topic in the data mappings configured for your dataset in wis2box, for example:

urn:wmo:md:it-meteoam:surface-weather-observations.synop

Make sure to configure the parameters as described at Parameter Mappings in ADL Dispatch Channels.

Once you have configured the “WIS2BOX Upload” channel use Grafana as described in Data ingest workflow monitoring to verify that data is correctly received and processed by your wis2box instance.
